As part of the DN42 project, I run my own Autonomous System which I use for learning and experimenting with network technologies, as well as meeting new people and peering with fellow network geeks! I currently run a full-mesh, dual-stack BGP network over 3 global regions with iBGP and OSPF handling internal routing. It’s a lot of fun, and if you’re on DN42, I welcome peering requests - see the peering section below for details.

Services

I run a few of my own services over the DN42 network, and the first one I had to set up was my TNFS community site for the old 8-bit ZX Spectrum computer! I’ve written in the past about my retro hacking experiments and it was the perfect project to connect to my new network. If you have a Spectrum with Spectranet card fitted and are on the DN42 network, you can connect to a special DN42-specific version of the site at speccy.mdr.dn42 and I have also ported the web-based emulator and infrastructure to be available at https://speccy.mdr.dn42. Join in the retro 1980s fun with games, message boards and lots of other features!

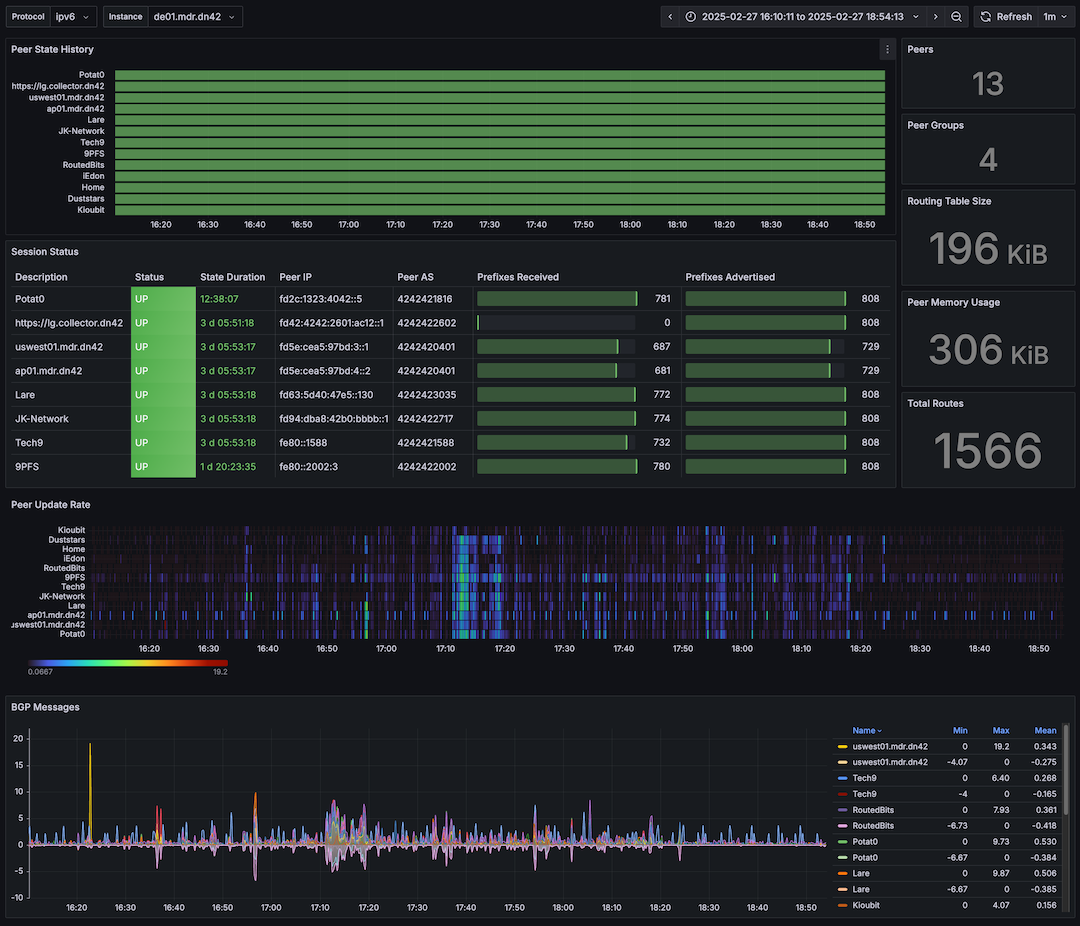

For a view into my network, I have made my Grafana monitoring stack public. You can access it as https://grafana.markround.com on the clearnet, or internally at https://grafana.mdr.dn42. It currently shows the BGP metrics and peerings across my 3 public endpoints, and I’ll be adding more dashboards and monitoring tooling over the coming months.

And of course, this site itself is available over DN42! You can reach it at https://mdr.dn42, hosted on a dedicated DN42-only virtual machine. Note that like my other DN42 services, it uses a TLS certificate issued by the DN42 Certificate Authority, so you’ll need to have the certificate installed or you’ll see a lot of security warnings on DN42 sites.


Peering

My network and internal services/VMs span 3 regions, and I currently offer a public node for peering in each. If you’d like to connect to my network from within DN42 just email me using the details in the DN42 registry or elsewhere, or find me on the #dn42 IRC (my nick: mdr).

Nodes

Europe (Nuremburg)

  • de01.dn42.markround.com
    • Public IPv4: 116.203.55.79
    • Public IPv6: 2a01:4f8:1c1e:64a1::1
    • DN42 Hostname: de01.mdr.dn42
      • IPv4: 172.21.84.65
      • IPv6: fd5e:cea5:97bd::1
    • Wireguard public key: ZPwzKog7ii0RVJsvRKRz2WdFHU0FWujMKDVqk9UKbF0=

US West (Oregon)

  • uswest01.dn42.markround.com
    • Public IPv4: 5.78.83.68
    • Public IPv6: 2a01:4ff:1f0:8c42::1
    • DN42 Hostname: uswest01.mdr.dn42
      • IPv4: 172.21.84.89
      • IPv6: fd5e:cea5:97bd:3::1
    • Wireguard public key: HQy5+GyAOSYGpZ9hwbNxLHrSOvKZtJ3yZUazImiM5Bs=

Asia Pacific (Singapore)

  • ap01.dn42.markround.com
    • Public IPv4: 5.223.52.254
    • Public IPv6: 2a01:4ff:2f0:1453::1
    • DN42 Hostname: ap01.mdr.dn42
      • IPv4: 172.21.84.90
      • IPv6: fd5e:cea5:97bd:4::1
    • Wireguard public key: hxKPfgcJqROFCs8AF8unVj3ie0UYYTmJIfEu01YVVmM=

Policy

This is more of what you’d call guidelines than actual rules ;) Basically, “if it works, it works” and I’m more than happy to work around odd situations/scenarios, it’s part of the fun of DN42. That said, there a few things I prefer:

  • Ping times < 80ms to nodes if possible.
  • Wireguard only for VPN connectivity. I can offer outbound connectivity to your site, or provide an endpoint for you to connect to (or both!).
  • Multi-protocol BGP with extended next-hop over IPv6 strongly preferred.
  • IPv6-only is fine!
